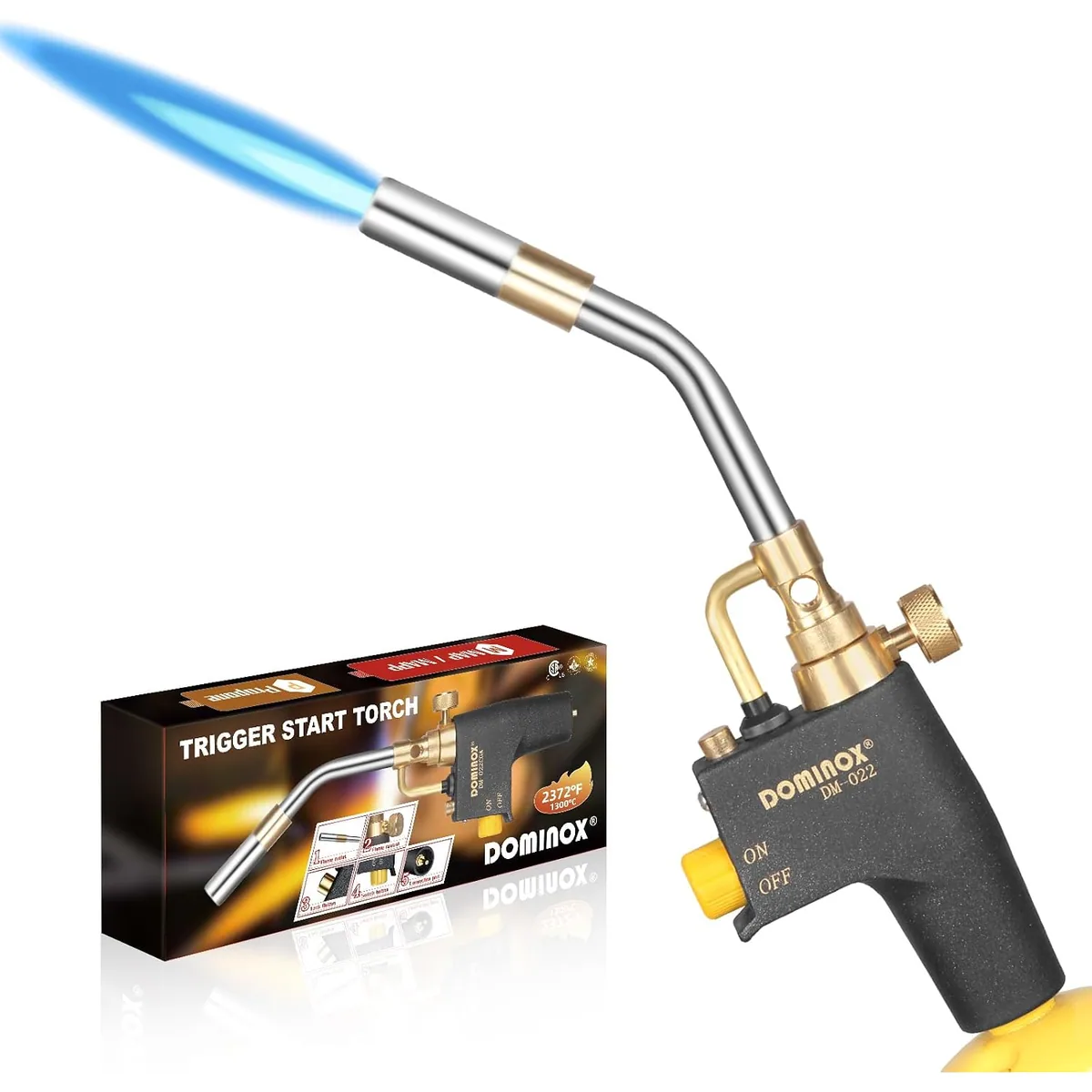

DOMINOX DM-022 Trigger-Start Propane Torch
Model DM-022CGA
2,372°F
4 other models in this line share this rating.
Our best-known torch head: one press lights it, one button holds the flame.
Specifications
- Model
- DM-022CGA
- Ignition
- Trigger start with flame lock
- Flame temperature
- up to 2,372°F
- Fuel
- Propane, MAP or MAPP, CGA600 thread
- Body
- Cast aluminium handle, brass valve
- Weight
- 532 g
- Size
- 10.8 x 3.3 x 1.5 in
- In the box
- Torch head
What it does
This is the torch most people know us by. Press the trigger and it lights. Press the lock and the flame stays on while your hand relaxes, which matters on a joint that takes a minute to come up to heat.
It threads onto any CGA600 cylinder of propane, MAP or MAPP gas. The flame runs at up to 2,372°F, enough to braze copper pipe up to 3/4 inch.
Good to know before you buy
- The gas cylinder is not in the box.
- Open the gas knob fully before you pull the trigger. A half-open valve wears the igniter.
- Above 3/4 inch copper the joint heats slowly. That work wants a larger tip.
What buyers say
5 out of 5
Great propane torch head
Very heavy duty construction and dependable flame ignition and control.BUT, when I first tried the torch it failed to light. I found the problem was with the spark wire was not inside a small spring in the torch head. Maybe during assembly? Once I placed the spring over the wire it worked flawlessly ever since.
5 out of 5
Great Quality Torch!
The Dominick's Torch DM-022 is a torch I hadn't tried before. When it came time to replace one of my other torches, I noticed this brand cost about 40% less than the one I had been buying, so I decided to give it a chance.I was very pleasantly surprised by the quality of this torch.
4 out of 5
Torch Setup Working Now
This device works very well once setup how it is intended from the factory. This torch did not start at first until I readjusted the igniter cable located on the wall of the torch after screwing off the head off the torch. This has to be in center of the spring in order for the torch to light.
More DOMINOX Propane Torches
-

DM-021
DM-021 Trigger-Start Propane Torch
A regulated torch you can tip sideways without the flame sputtering.
2,372°F
-

DM-022CGA

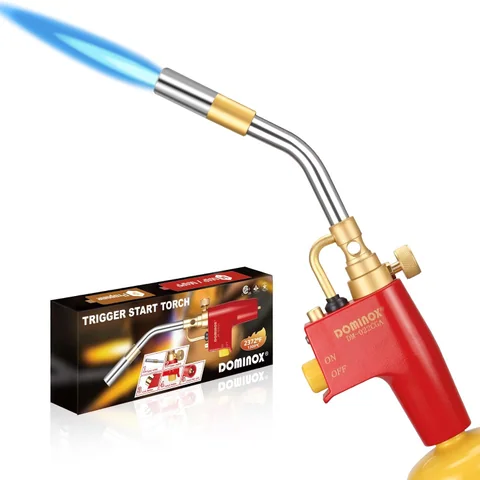

DM-022 Trigger-Start Propane Torch, Red
The DM-022 with a red body, easy to spot in a crowded tool bag.
2,372°F
-

AX1-108CGA

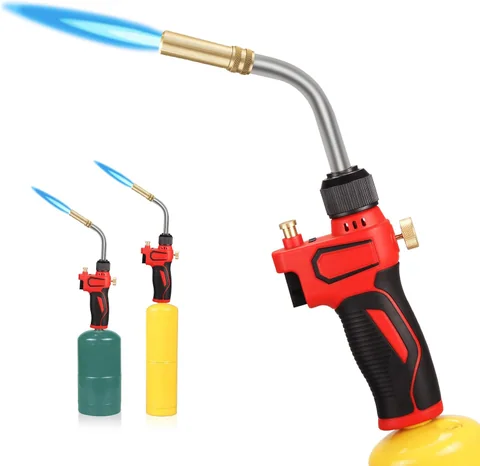

AX1-108 Heavy-Duty Propane Torch with Igniter
